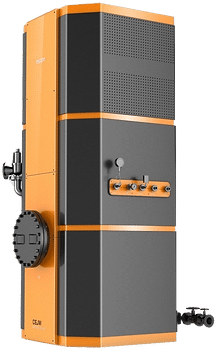

ACME Engineering: Model CEJW

ACME ENGINEERING PRODUCTS offers hot water boilers based on proven design for building complexes, commercial structures, and light industry. This boiler can be connected directly on the high voltage power distribution network.

​

Any voltage up to 20 KV, 3 phases, 3 wires, and centerline grounded line.

• Capacity range: 2500 to 68,000 KW
• Electric Power Supply Voltage: 4160 to 25000 V
• Maximum Operating Temperature for Standard Models: 180 °C (360 ° F)
• Operating pressure: 3 to 14.5 bar (50 to 200 psi)
• Power Feeds (Current Passage) assembled and certified for 42000 V and 16 bar (230 psi) for any operating voltage
• Fast Response: 0 to 100 % capacity in:
  Hot State: 1 minute
  Cold to Hot state: 15 to 25 minutes (depends on the size)
• Economical even for capacities between 2 to 6 MW
• Simple controls
• Can be added to existing systems and is suitable for optional water storage facilities
• Ability to take advantage of low off-peak electricity rates and demand swings

CEJW boilers convert virtually 100% of the electrical energy into heat. Automatic load and temperature controls provide step-less control over an output range from 10 to 100%.

​

• Economical installation
• Lower operating costs
• Safer operation
• Minimal maintenance
• Environmentally friendly
