Grundfos: KP

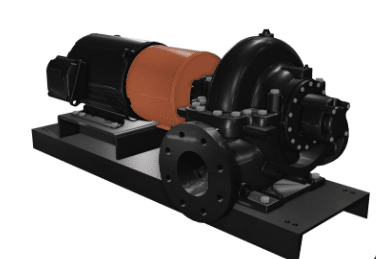

Grundfos PACO KP: Horizontal Split-Case (Double-Suction) Pump

The Grundfos PACO KP is a single-stage, between-bearings, horizontal split-case centrifugal pump engineered for high-flow, high-reliability HVAC and industrial water duties. Its axially split casing and double-suction hydraulics deliver smooth, efficient operation with low vibration and easy service access ideal for chilled and condenser water, district energy, water distribution, and central plant heating/cooling.

Why KP

• High efficiency, stable hydraulics – A double-volute design reduces radial loads, internal recirculation, and turbulence for longer life and better wire-to-water efficiency. Francis-vane impellers further cut vibration and noise.

• Serviceability by design – The axially split upper casing lifts off, giving top access to wear rings, impeller, bearings, and seal without disturbing motor or pipework cutting outage time and maintenance cost. Independent bearing housings and a 360° machined register fit help maintain alignment and limit shaft deflection.

• Robust, configurable construction – Standard bronze wear rings, integrally cast suction baffles (for even inlet flow and lower NPSH requirements), multiple metallurgy options, and a broad menu of impeller and shaft-seal choices to suit duty and fluid.

• Certified for potable/contact applications – NSF/ANSI 50 & 61 certifications available.

Typical Applications

• Chilled & hot water circulation

• Condenser water

• Service water & water distribution

• District energy and central plant heating/cooling
  These are core design targets in the KP program and align with common commercial/industrial specs. PumpProducts.com

Performance & Operating Envelope

• Flow: up to 20,000 gpm

• Head: up to 700 ft

• Fluid temperature: −20° to 275°F (−29° to 135°C)

• Working pressure: up to 400 psi

• Discharge sizes: 2–20 in.
  (*Actual limits depend on selection; consult Grundfos sizing for your duty point.)

For commonly listed catalog configurations in Product Selection, KP models show up to 12,400 gpm and 493 ft head final performance depends on model and trim.

Key Construction Features

• Single-stage, non-self-priming, between-bearings split case design

• Axially split casing for rapid service

• Independent bearing housings; cartridge-style for ease of replacement

• Bronze wear rings standard; multiple materials and seal options available

Why buy through Raven

Raven pairs Grundfos engineering with local application support selection, submittals, commissioning coordination, and lifecycle service so your KP package meets spec, installs cleanly, and runs efficiently for the long haul.
