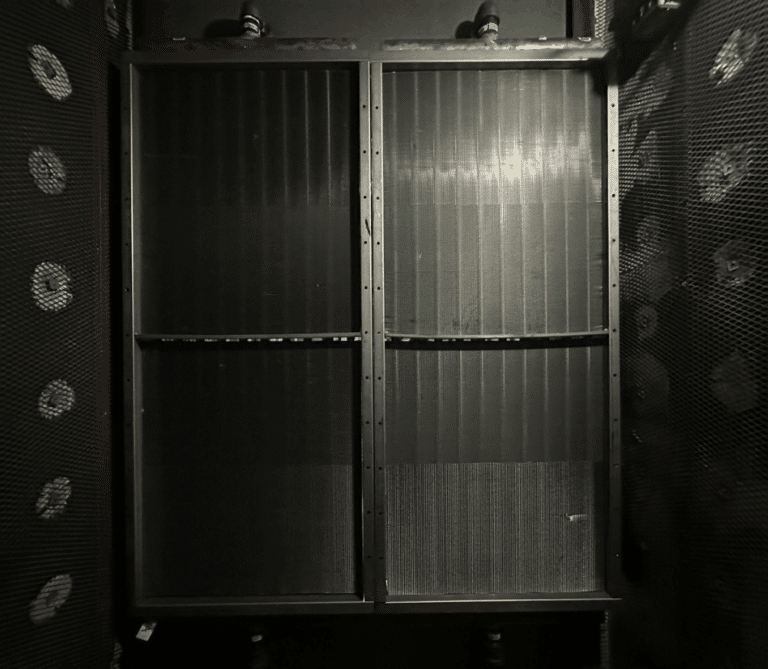

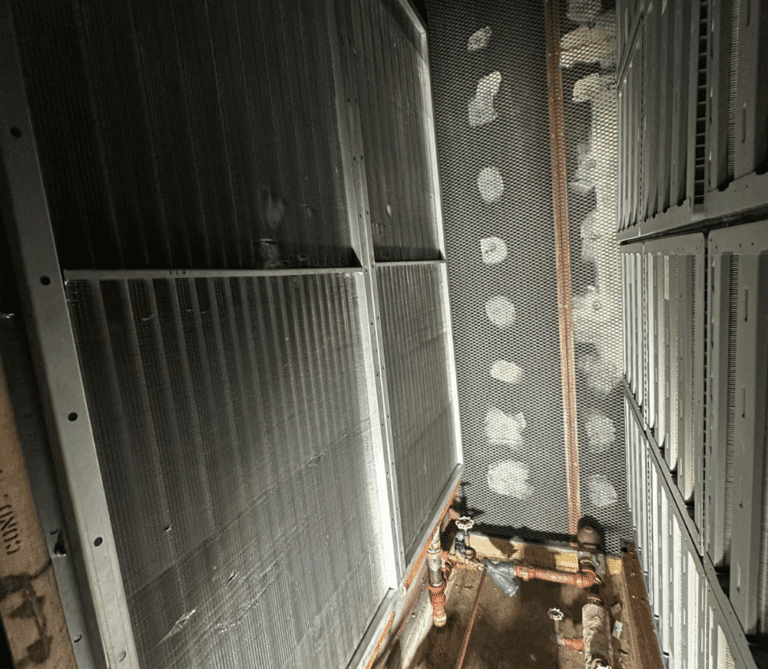

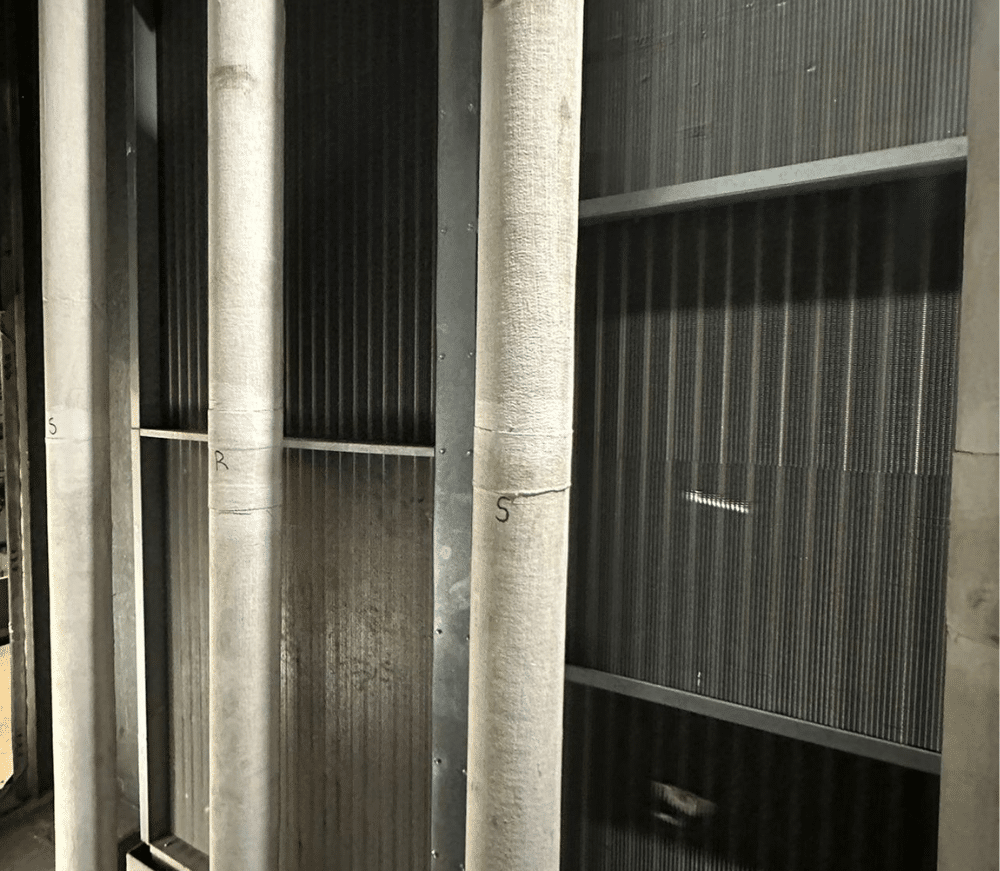

Raven Supply is proud to support the mechanical upgrades at St. Paul’s Hospital with a supply of Modine heating coils, designed for durability and performance in high-demand healthcare environments.

The project included a combination of steam and fluid coils, each built to Modine’s precise specifications for heat transfer efficiency and reliability under varying operating pressures ranging from 20 PSI to 50 PSI.

Key project details:

• Manufacturer: Modine Manufacturing Co.
• Application: Steam and hydronic heating coils
• Operating Pressure: 20–50 PSI
• Coil Construction: Copper tubes, aluminum fins, with custom flange and casing dimensions per Heatcraft/Modine design
• Configuration: Multiple right-hand and left-hand connection orientations to match existing hospital air handling units
• Performance Focus: Enhanced heat transfer efficiency and reduced pressure drop for consistent heating across multiple zones

Each coil was carefully dimensioned to match existing casings and airflow directions, minimizing installation downtime. The design and submittal process incorporated precise measurements and drawings to ensure a seamless fit, including variations in fin height, casing depth, and connection placement.

Raven Supply coordinated closely with Modine’s engineering team and the hospital’s mechanical contractor to ensure quick turnaround and accurate fabrication a critical factor for maintaining comfort and reliability within a healthcare facility operating 24/7.
