Djavad Mowafaghian Centre for Brain Health

As a medical research facility, high-pressure steam is required for sterilizing tools and equipment, as well as for humidification.

Project details and overview

Client Served

University of British Columbia

Location

Vancouver, British Columbia

Mechanical Contractor

IMEC Mechanical

Project Consultant

FWD Engineering, Stantec

Equipment Details

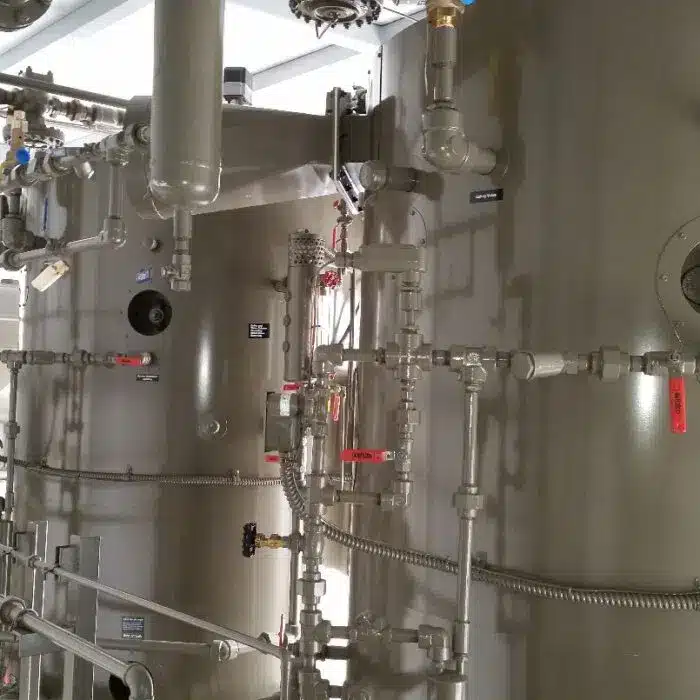

Fulton engineered skid package with (2) VMP 49.5 HP high pressure steam boilers, dual steam headers, complete with triplex feedwater system, blowdown, and chemical feed system.

The mechanical scope of the building was procured as a design-build, a project format that is becoming increasingly common for new medical facilities in British Columbia. IMEC Mechanical approached Raven Supply as they sought expertise in procuring a complete steam plant that could be installed on the rooftop of the building. Raven came forward with the perfect solution – a complete factory-assembled “plug and play” steam system; custom engineered, fabricated, assembled, and tested by the experts at Fulton.

There were several constraints that led Raven and Fulton to the final design. First, the client required 3000 pounds per hour of steam output, but they would not have a power engineer available on site. BC law states that any high pressure steam plant with over 10 square meters of boiler surface area requires a licensed 5th class power engineer to be present at all times while the plant is operating. In many other jurisdictions, such a law either doesn’t exist or it allows for much higher capacities without a power engineer. After some investigation, Raven discovered that a “steam plant” is strictly defined as the boiler(s) that share common downstream piping. Therefore, if two boilers had completely separate steam headers and are used for different loads, then they would be considered two separate steam plants, even though they would be sitting in the same room and using the same ancillaries.

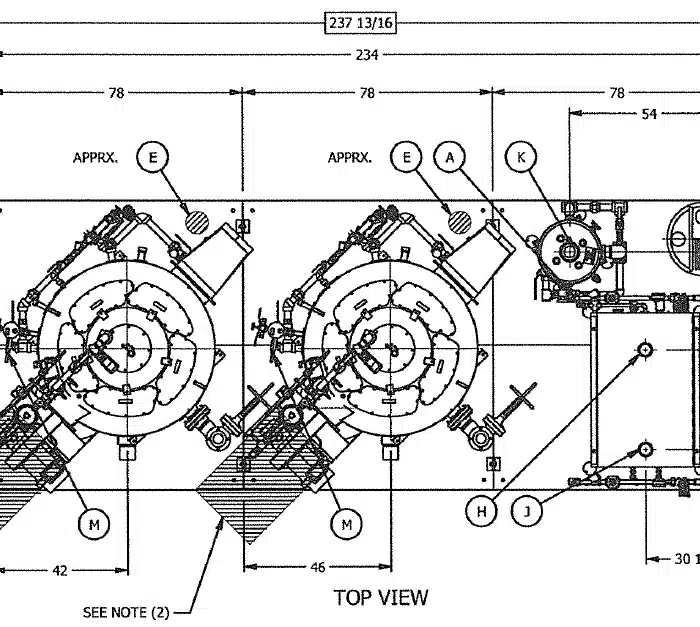

The contractor also wanted to have the entire rooftop mechanical room built off-site so that it could simply be lowered overtop of the steam system after being craned into position. In order to do this, the exact dimensions of the entire steam system including all interconnecting pipework needed to be known well in advance. With the help of Fulton’s experienced engineering team, Raven was able to provide “as-built” drawings within an inch of accuracy before the system was even assembled. Fulton was even able to reduce the overall height by a few inches to meet a municipal building code restriction.

Through careful coordination and combined expertise, Fulton, Raven, and IMEC were able to successfully deliver a world-class custom steam system inside a robust rooftop enclosure, complete with lighting and fire protection. The boilers were provided with automatic blowdown systems to reduce the amount of human involvement required for the plant’s operation.
